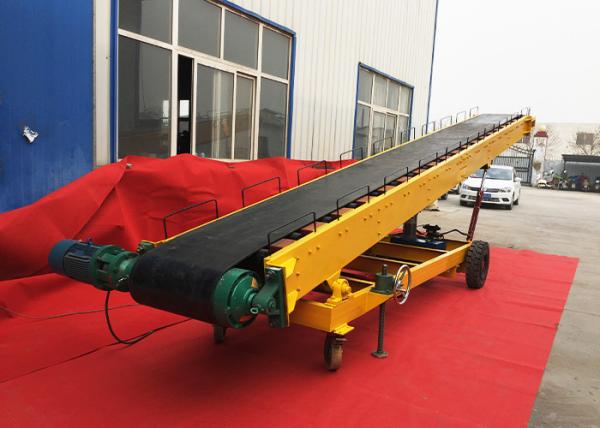

Lifting Height Adjustable Portable Movable Belt Conveyor
Product Description
Movable belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance. It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m3. It can be also used in conveying packed bags or cartons.
Specification
| Model | DY series |
| HS | 8428330000 |
| Belt Width | 500mm-2000mm |
| Conveyor Length | 5-30 meters |
| Belt Speed | 1.0m/s-2.0m/s |
| Lifting Height | As per model |
| Power | 2.2KW-30KW |
| Voltages | 220V-660V |
Parameter sheet
| Model | Belt Width (mm) | Lenth(m) | Belt Speed (m/s) | Lifting Height | Slope Angle | Capacity (m³/h) |
| DY-500 | 500 | Max.20 | 0.8-2.0 | adjustable | 0-30 | 50-140 |
| DY-650 | 650 | Max.20 | 0.8-2.0 | adjustable | 0-30 | 100-250 |
| DY-800 | 800 | Max.25 | 0.8-2.0 | adjustable | 0-30 | 170-350 |
| DY-1000 | 1000 | Max.25 | 0.8-2.0 | adjustable | 0-30 | 270-550 |
Notes:The parameter above is just for reference,More models pls inquiry us directly.We accept customization.
Application
The mobile belt conveyor widely used in mining,gravel field, metallurgy, building materials,chemical industry,mineral processing,coal mining and other industries.It can convey bulk material like coal,cement,sand,cereal etc.And can convey lump material,such as rock,also it can convey 50kg bags.
Packing & Shipping
Packaged:Wooden case or full container
Shipment:3-7 Working days after receiving your deposit
